This thing was designed based on https://www.thingiverse.com/thing:803447.
And for "Official 7inch LCD frame and stand
...Zeig mehr 2"
https://www.thingiverse.com/thing:2347633
There are several variations. And there are things of experimental design among them.
Please find "box_247_readme.pdf" and read it.

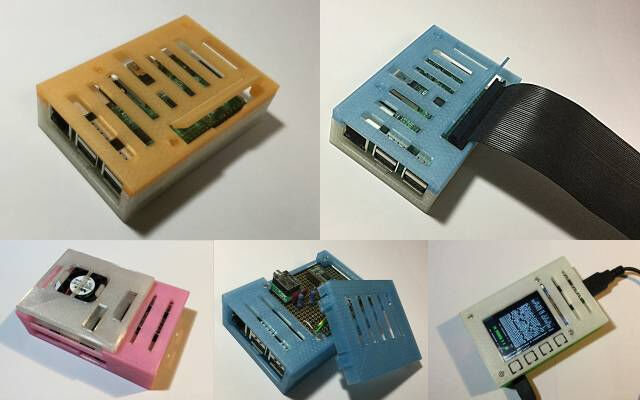

-PLAN-1; box_247_bdy.stl & box_247_cvr1.stl
Jumper-wire(for bread-board) ready but not for GPIO flat cable & connector.
-PLAN-2; box_247_bdy.stl & box_247_cvr2.stl
GPIO flat cable & connector ready.
-PLAN-3 [experimental]; box_247_bdy.stl , box_247_cvr3.stl & box_247_tp1.stl
for RasPi with 56x65mm universal board.
-PLAN-4 [experimental]; box_247_bdy.stl , box_247_cvr3.stl & box_247_cfn.stl
for RasPi with mini cooling fan.
-washers; box_247_wsh100 / 075 / 050 .stl
1mm / .75mm / .5mm washer for M2.6(2.5) bolt.
-Regarding; box_247_bdy.stl
This was designed for
“Official 7inch LCD frame and stand 2”
If you do not interest it,
please find box_247_bdy_beta.stl
----------
[ 6/10/2017 ] - One item, "BOX_260_cvr4" and 2 pictures were added.
-"BOX_260_cvr4";
Top cover for Adafruit PiTFT 2.2" HAT.
"BOX_260_cvr4" is the modified "box_247_cvr3" for PiTFT 2.2" HAT.
Usage is almost the same as "box_247_cvr3".
Please refer to "box_247_readme.pdf" and added photos.
STL file; BOX_260_cvr4.stl
AutoDESK 123D file; BOX_260_cvr4_fnd.123dx
[ Adafruit PiTFT 2.2" HAT ]
https://www.adafruit.com/product/2315
----------
[ 10/3/2017 ] - One item, "BOX_268_tp3" and 2 pictures were added.
-"BOX_268_tp3";
Cooling-Fan cover for "PLAN-4".
Please refer to "BOX_268_tp3.123dx" and added photos.
STL file; BOX_268_tp3.stl
AutoDESK 123D file; BOX_268_tp3.123dx
----------
[ 10/3/2017 ] - Stand unit is available.
1 picture is added.
Please refer to "thing: 2554573".
"Frame/Stand for Raspberry pi zero + FlashAir + CameraModule"
--> https://www.thingiverse.com/thing:2554573
If you print-out the following 8 STLs and assemble them, the stand for RPi 2 will be completed.
Stnd-Unt_atd012.123dx
-su012-arm-L.stl
-su012-arm-R.stl
-su012-leg-L.stl
-su012-leg-R.stl
-su012-dmybtry.stl
-su012-stndbs.stl
BOX_269-st26.123dx
-BOX_269-st26-bs1.stl
-BOX_269-st26-bs2.stl
